Standard Pump

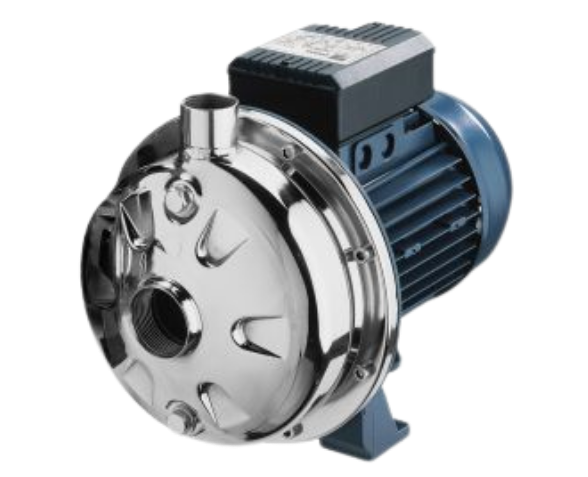

The EBARA CDX Single Impeller Stainless Steel Centrifugal Pump is designed for clean water pumping applications. It features a closed centrifugal impeller and corrosion-resistant AISI 304 stainless steel components. These include the pump casing, impeller, and casing cover.
Furthermore, the EBARA CDX offers single-phase and three-phase motor options with power ratings from 0.37 to 1.8 kW. With a maximum working pressure of 8 bar, this pump supports different clean water flow and pressure requirements.
Features a closed centrifugal impeller for clean water pumping. Different models provide various flow rates and pressure levels.
The casing, impeller, and casing cover use AISI 304 stainless steel for corrosion resistance. An AISI 316 version is also available.
Supports a maximum working pressure of 8 bar. Standard liquid temperatures reach +60°C or +90°C, depending on the model. Selected versions support temperatures up to +120°C.
Equipped with a TEFC motor featuring IP55 protection and Class F insulation. Single-phase and three-phase options are available at 50 Hz.
Uses a standard Ceramic/Carbon/NBR mechanical seal and sealed ball bearings. Optional mechanical seal materials are available for selected versions.
| Specification | Details |
|---|---|
| Pump Type | Single Impeller Centrifugal Pump |
| Liquid Handled | Clean Water |
| Material | AISI 304 Stainless Steel |
| Optional Material | AISI 316 (L Version) |
| Motor Power | 0.37–1.8 kW |
| Maximum Listed Flow Rate | 15 m³/h (250 L/min) |
| Maximum Shut-Off Head | 40.5 m |
| Maximum Working Pressure | 8 bar (0.8 MPa) |
| Liquid Temperature | -5°C to +60°C / +90°C (model-dependent) |
| Motor Protection | IP55, Insulation Class F |
| Power Supply | Single Phase 230V / Three Phase 230/400V, 50 Hz |
| Mechanical Seal | Ceramic / Carbon / NBR |
