Water Leak Detector

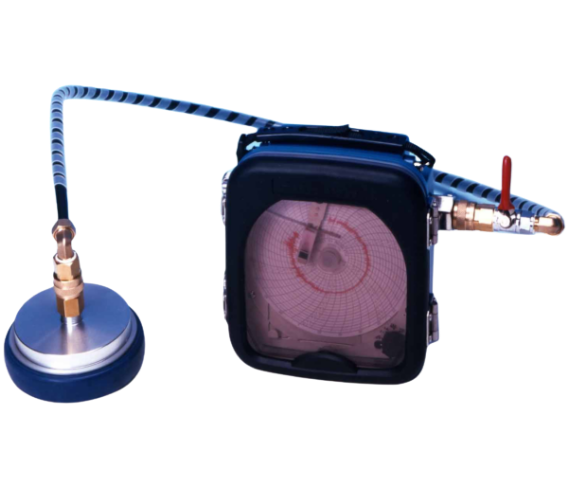

FUJI FJN-501 Portable Water Pressure Recorder
The FUJI FJN-501 Portable Water Pressure Recorder is a quartz clock-based, field-ready device designed to continuously and accurately monitor water pressure. Available in two types (Type A and Type C), it enables time-based recording either by the hour or by the minute, providing flexibility for different monitoring needs.
Built with a weather-resistant ABS resin case and waterproof design, the FJN-501 is perfect for on-site inspections conducted by water utility companies, maintenance teams, and piping technicians. Its analog chart recording method makes it easy to interpret water pressure trends in various distribution systems.
| Item | Details |
|---|---|
| Model | FJN-501 |
| Recording Type | Type A: Hourly (1, 6, 24, 72, 168 hours) Type C: Minute-based (15, 30, 60 minutes) |
| Pressure Range | 0–1 MPa 0–2 MPa 0–2.5 MPa 0–5 MPa |
| Accuracy | ±1.6% F.S. |
| Internal Clock | Quartz clock |
| Power Supply | 1 × AA Alkaline Battery |
| Battery Life | Approx. 6 months |
| Connector Type | 3-way, R1/4 |
| Case Material | ABS Resin (Weather & Impact Resistant) |
| Dimensions | Approx. 215 mm × 190 mm × 120 mm |
| Weight | Approx. 1.3 kg (with battery & chart paper) |
| Output Data | Analog Graph on Chart Paper |
Monitoring water pressure in municipal distribution networks (PDAM)
Pressure logging in industrial and commercial pipelines
Pressure testing during maintenance or leak detection
Analyzing water system performance in residential, building, or industrial settings
Documenting pressure fluctuations over specific time periods
