EBARA MS/MSL/MSH – Horizontal Multistage Pump
The EBARA MS, MSL, and MSH series are horizontal multistage pumps designed for high-pressure applications. These pumps offer high efficiency and robust construction for a wide range of industrial needs.
Key Features:
EBARA’s unique double volute construction provides higher operational efficiency across a broader capacity range compared to conventional guide vane pumps.
The simple pump structure contributes to a longer service life. These pumps are compact, lightweight, and operate with minimal noise.
The double volute casing is designed to balance radial forces across the full operating range. Axial force is absorbed by a balance disk equipped with a wear indicator at the shaft end.
All components are fully standardized for easier service and maintenance.
The pump is designed not to exceed rated horsepower at any capacity. (MS model)

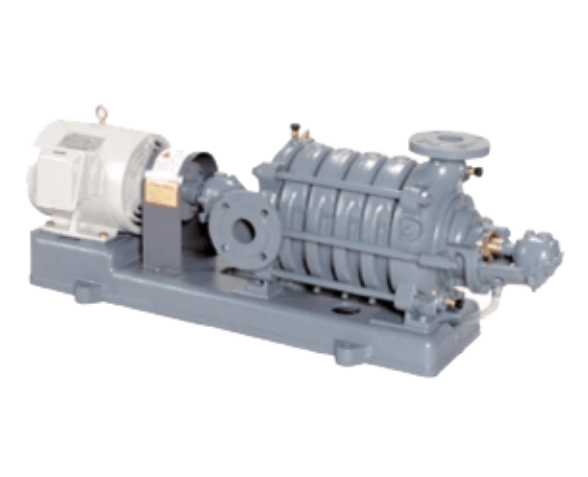

MS Model (4-pole motor drive)
Specification Categories:
Liquid: Fresh water 0–80°C (standard), 81–100°C (optional)
Total suction head: -6m at 20°C, max. capacity per selection chart
Maximum suction pressure: 0.4 MPa (4 kgf/cm²)
Construction:
• Impeller: Enclosed
• Shaft seal: Gland packing
• Bearing: Sleeve bearing (oil) or sealed ball bearing
Flange:
• Suction: JIS 10K thin type
• Discharge: JIS 10K thin/normal type
Materials:
• Casing: Cast iron
• Impeller: 304 SS (40MS, 50MS), Bronze (65MS–150MS)
• Shaft: Carbon steel
• Shaft sleeve: Bronze
Motor: 3 phase, 4 pole, 1.5–55 kW
Location: Indoor
Accessories:
• Bare shaft: Plug/funnel, Companion flange
• With motor: Base, Coupling, Guard, Flange
MSL/MSH Models (2-pole motor drive)
Specification Categories:
Liquid: Fresh water 0–80°C (standard), 81–120°C (optional)
Total suction head: -6m at 20°C, based on selection chart
Maximum suction pressure: See selection chart
Construction:
• Impeller: Enclosed
• Shaft seal: Gland packing, external flushing
• Bearing: Sleeve bearing (oil)
• Additional: Water cooling jacket
Flange:
• Suction: JIS 10K normal
• Discharge: MSL – JIS 10K, MSH – JIS 20K
Materials:
• Casing: Cast iron, ductile (MSH only)
• Impeller: Bronze
• Shaft: Carbon steel
• Shaft sleeve: Bronze
Motor: 3 phase, 2 pole, 3.7–75 kW
Location: Indoor
Accessories:
• Bare shaft: None
• With motor: Base, Coupling, Air vent, Funnel, Flange, Foot valve, etc.
